Symptoms of a Failing SSD: How to Know If Your SSD Is Dying

How Do I Know If My SSD Is Failing?

An SSD is likely failing if your computer suddenly slows down, freezes or crashes during file transfers, throws file corruption errors, or stops detecting the drive altogether with a “No bootable device found” message. Unlike a hard disk, a failing SSD gives no warning noise, so these software-level symptoms are often the only signs you get before the drive stops responding. If you notice any of them, back up your data immediately, then have the drive tested properly, since symptoms alone cannot confirm whether the SSD or another component is at fault.

At Geld Technologies, we often see customers assume an SSD is “safe” simply because it has no moving parts. While SSDs are generally faster and more shock-resistant than traditional hard drives (HDD), they can still fail. When they do, the symptoms can range from mild slowdowns to complete data loss.

In this article, we explain the most common symptoms of a failing SSD, what causes SSD failure, and how we test SSDs for issues such as overheating, bad blocks, degraded NAND, and controller failure.

We have also included real thermal test images from one of our SSD evaluations to show how heat can become a serious concern, especially on compact M.2 NVMe SSDs.

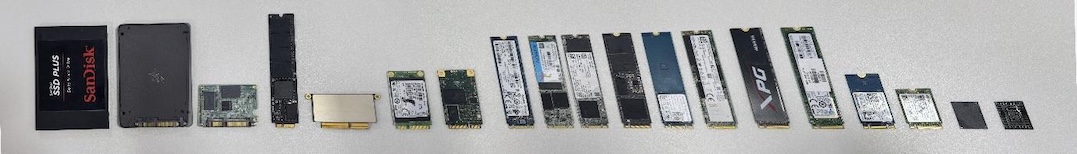

Different Types of SSDs We Commonly Test

SSDs come in several form factors and interfaces. The most common types we test include 2.5-inch SATA SSDs, M.2 SATA SSDs, M.2 NVMe SSDs, and embedded or board-level SSD storage solutions such as BGA SSDs.

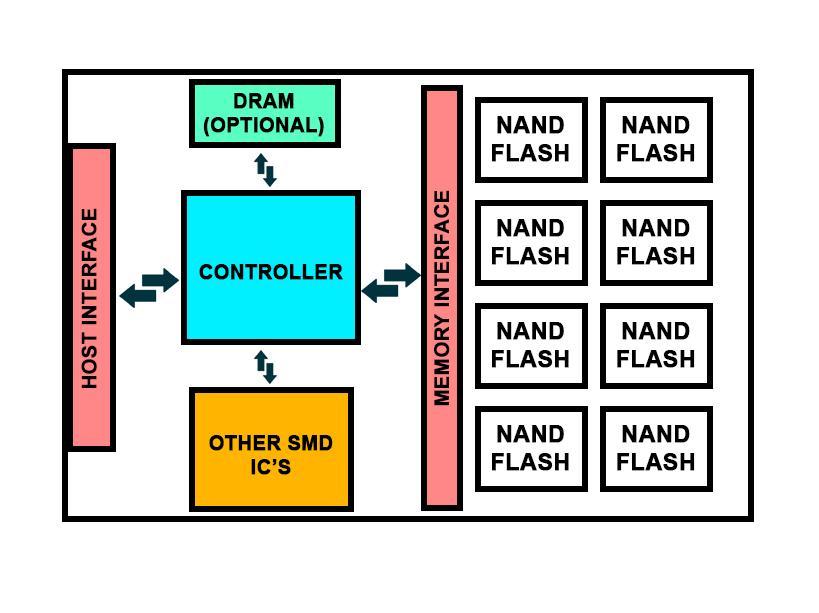

Although the physical design differs, most SSDs rely on the same core components: NAND flash memory, a controller, firmware, cache or buffer management, and power regulation circuitry.

If any of these elements becomes unstable, the SSD may begin to show failure symptoms.

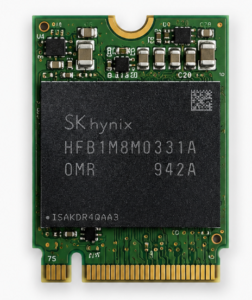

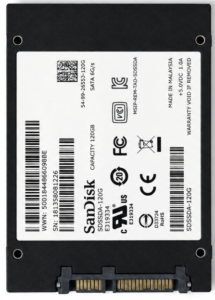

Form Factor	M.2 (2230)	2.5-Inch	M.2 2280	M.2 2280
Interface	NVMe	SATA 2 & 3	NVMe or SATA	NVMe
Protocol	PCIE GEN 3,4,5	AHCI	PCIE GEN 3,4,5 SATA 2 & 3	PCIE GEN 3,4,5 SATA 2 & 3

Common Symptoms of a Failing SSD

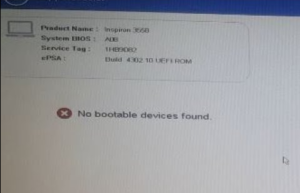

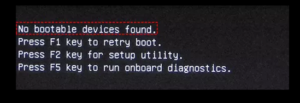

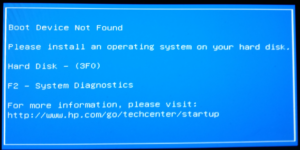

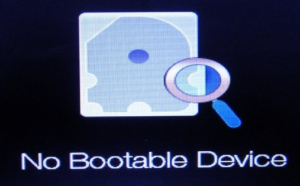

No bootable device found

One of the most common symptoms of SSD failure would happen during the initial boot of your computer, depending on your make and model of your computer, the above error messages would appear, occasionally after a few restart attempts it may boot into your desktop successfully, if you happen to come across this message our advice would be to immediately backup your important files and data.

PS: This error may also be due to a wrong boot order, for example trying to boot off an external drive such as thumbdrives, ext. SSD/HDDs.

Slow Boot Times and Poor Performance

Another common warning sign of SSD failure is a noticeable drop in performance. Windows may take much longer to boot, applications may open slowly, and file transfers may start fast before suddenly dropping in speed.

This does not always confirm SSD failure by itself. Poor performance can also be caused by software issues, low storage space, malware, background processes, or overheating. However, if the slowdown is accompanied by other symptoms, the SSD should be tested.

• Windows taking much longer to boot
• Applications opening slowly
• File transfers dropping sharply in speed
• Random lag when opening folders or files

Freezing, Hanging, or Blue Screen Errors

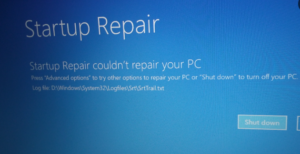

A failing SSD may cause the system to freeze while opening files, stop responding during boot, crash randomly, or produce blue screen errors.

This usually happens when the system struggles to read unstable data or when the drive intermittently stops responding. In some cases, the computer may restart or become stuck in a boot loop.

At Geld Technologies, we do not diagnose based on symptoms alone. Freezing and crashing can also be caused by RAM, motherboard issues, software corruption, or power instability, so proper testing is necessary.

• Random freezing during file access
• Repeated blue screen errors
• Boot loop or sudden restart
• System becoming unresponsive under normal use

Corrupted Files or Missing Data

Another common sign of SSD trouble is file corruption. Documents may no longer open properly, photos or videos may become damaged, folders may become inaccessible, or files may appear to go missing.

When this happens, avoid unnecessary use of the SSD if the data is important. Continued writing to an unstable drive may reduce the chance of successful cloning or data recovery.

• Documents failing to open

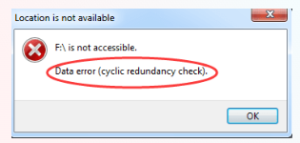

• Cyclic Redundancy Check (CRC) error

• Disk is Write-Protected
• “RAW” Format
• Damaged photos or videos

• Folders becoming inaccessible
• Repeated “scan and repair drive” prompts

SSD Overheating: A Real Example from Thermal Testing

One of the most interesting issues with modern SSDs, especially M.2 NVMe SSDs, is heat.

Compact high-speed drives can generate substantial heat under load, particularly around the controller, which is often the hottest component on the board. When temperatures rise too far, the SSD may begin thermal throttling, meaning it deliberately reduces performance to protect itself, sometimes more than 90% of its rated speed.

The thermal images below were captured during SSD testing. They show a clear temperature difference between the controller hotspot, the rest of the board, and the surrounding ambient temperature.

Thermal Results from Our SSD Test

What These Thermal Results Mean

These results show a major temperature increase at the SSD controller area, reaching approximately 90°C in the hotter test states.

From a practical repair and diagnostics perspective, this matters because higher SSD temperatures can reduce sustained write performance, trigger thermal throttling, and contribute to long-term reliability concerns when combined with poor airflow or unsuitable installation conditions, especially in a laptop without heatsink.

Not every SSD running hot is automatically faulty. However, an overheating SSD should be taken seriously when the customer is already experiencing speed drops, lag, crashes, or unstable behavior in a compact laptop or external enclosure.

• Higher SSD temperatures can reduce sustained read/write performance.
• Excessive heat can trigger thermal throttling.
• Poor airflow, missing thermal pads, or unsuitable enclosure design can make the problem worse.
• Thermal issues should be checked together with SMART data, speed consistency, and real symptoms.

Can Heat Cause SSD Failure?

Heat is not the only cause of SSD failure, but it can contribute to instability and reduced performance, however over time, it increases the probability of failure.

In real-world repair cases, thermal problems may be caused by missing or degraded thermal pads, dust-clogged cooling systems, poor chassis airflow, continuous heavy write loads, or choosing an unsuitable SSD for the device.

For some systems, the solution is not only replacing the SSD, but also addressing cooling, airflow, and proper installation.

Other More Straightforward Reasons SSDs Fail

NAND Wear and Degradation

SSD cells have a limited program/erase lifespan. Over time, heavy usage can reduce reliability and cause read/write instability.

Heat generated by the SSD controller spreads through the PCB into the nearby NAND flash chips, causing them to operate at higher temperatures than intended. Prolonged heat exposure accelerates NAND cell wear. While heat does not destroy flash like it would a mechanical hard drive, it actively degrades the memory cells. It forces the electrical charges trapped inside the cells to leak away faster. Hence it reduces data retention, increases error rates, and can shorten the SSD’s overall lifespan.

Bad Blocks / Media Errors

Customers often use the term “bad sectors,” but SSDs handle storage differently from hard drives. On SSDs, the issue is more accurately described as bad blocks, media errors, or declining spare block reserves.

Controller Failure

The controller is effectively the brain of the SSD. If it fails, the drive may disappear completely, show the wrong size, become extremely slow, or disconnect intermittently.

Firmware Corruption

A firmware issue can make an otherwise intact SSD unreadable or unstable.

Power-Related Stress

Unstable power, unsafe shutdowns, and motherboard power faults can contribute to SSD problems or make existing issues worse.

How Geld Technologies Tests a Suspected Failing SSD

1. Symptom Review

We first identify the actual complaint: slow boot, random freezing, file corruption, SSD not detected, laptop overheating, repeated OS crashes, or intermittent drive behavior.

2. Detection Check

We confirm whether the SSD is properly detected in BIOS, Windows, external test equipment, or another known-good system where appropriate.

3. Health and SMART Review

Where supported, we review storage health information such as temperature, health percentage, percentage used, wear indicators, media errors, unsafe shutdown count, and read/write error indicators.

4. Read Testing and Performance Observation

We observe whether the SSD can read consistently, maintain transfer speed, behave normally under load, and remain stable as temperature rises.

5. Full System Diagnosis

We also check for non-SSD causes such as motherboard issues, RAM instability, Windows corruption, cooling problems, and power regulation faults.

When Should You Replace an SSD?

You should seriously consider SSD replacement if the drive shows signs such as:

• Frequent freezing or crashing
• Repeated file corruption
• Detection issues
• Major speed inconsistency
• Rising error counts or media errors
• Serious overheating under normal use
• Unstable controller behavior

If the data is still accessible, the best approach is often to clone or back up the drive immediately, then replace it before total failure occurs.

When Is Data Recovery Needed?

If the SSD is not detected, intermittently detected, corrupting files, freezing during access, or holding important business or personal data, the priority may shift from repair to data preservation.

In these situations, avoid:

• Reinstalling Windows on the same SSD
• Formatting the SSD
• Repeatedly stress testing the drive
• Using random repair tools without understanding the risk

If the data is important, the safest next step is proper assessment first.

Conclusion

A failing SSD does not always fail in a dramatic way. In many cases, it gives warning signs first: slow performance, freezing, blue screens, corrupted files, missing data, detection problems, overheating, and controller instability.

The thermal images in this article also show why SSD temperature should not be ignored, especially on M.2 NVMe drives. In our example, hotspot temperatures reached around 90°C, which is high enough to raise real concerns about throttling and long-term reliability.

If your laptop or desktop is showing signs of SSD trouble, early diagnosis can help prevent downtime and reduce the risk of data loss. Bring your device to us for  laptop repair in Subang Jaya today.
